Dual 775 DC Motor Full Specification

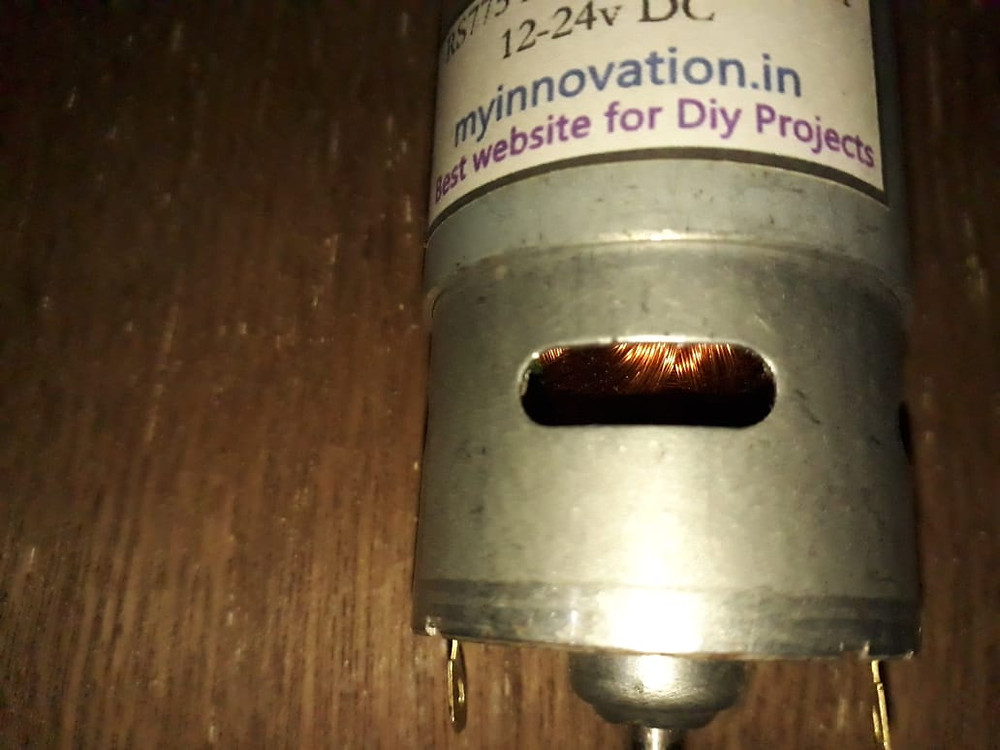

In this blog you get full details of 775 Dual shaft bearing motor. Its RPM, full load current, No load current, Toque all. So you will get full datasheet of this motor. Let's check out some photo of the motor.

Motor Purchase Link -

https://www.myinnovation.in/product-page/dual-shaft-775-dc-motor

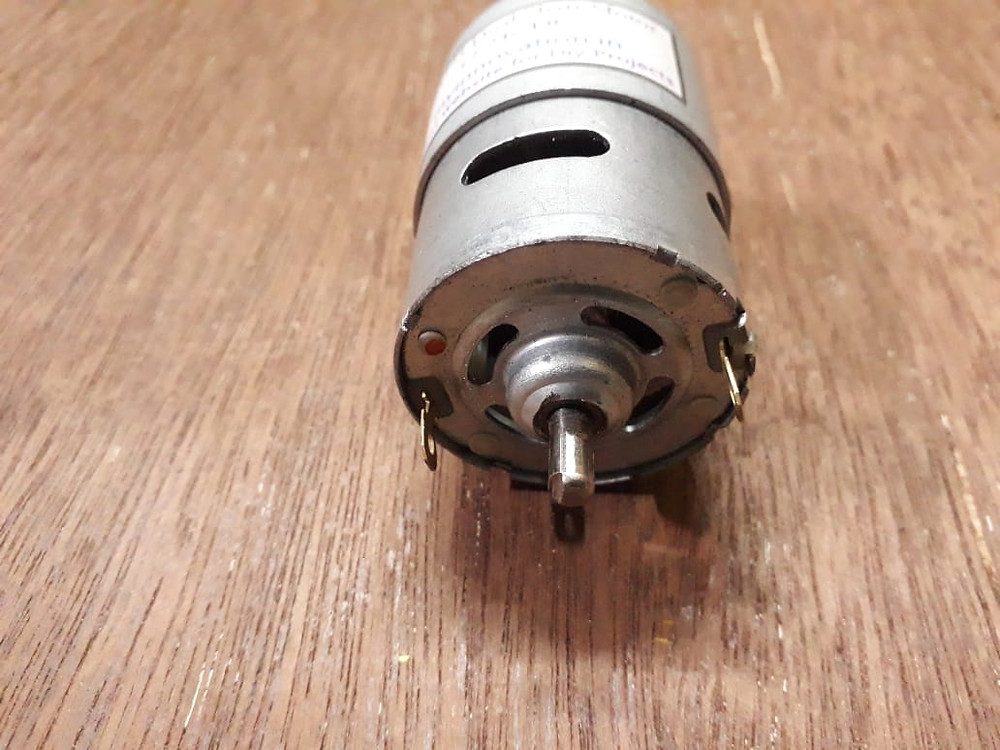

its 12 to 24v dc motor. The back side easily couple with coupler, pulley etc.

Dimension-

Motor dia - 44 mm

Motor Body length- 66 mm

Motor front shaft length- 30mm

Motor back shaft length- 10mm

Motor is non bearing

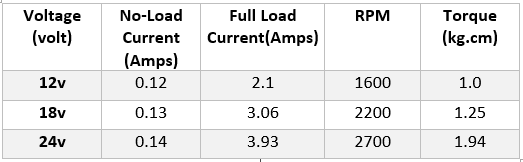

Full datasheet -

Full Unbox Video Link -

Hope all of you like this blog. If i missed any information in this blog comment here so that i can update that.
